华三DHCP+Nat内网用户通过防火墙访问外网

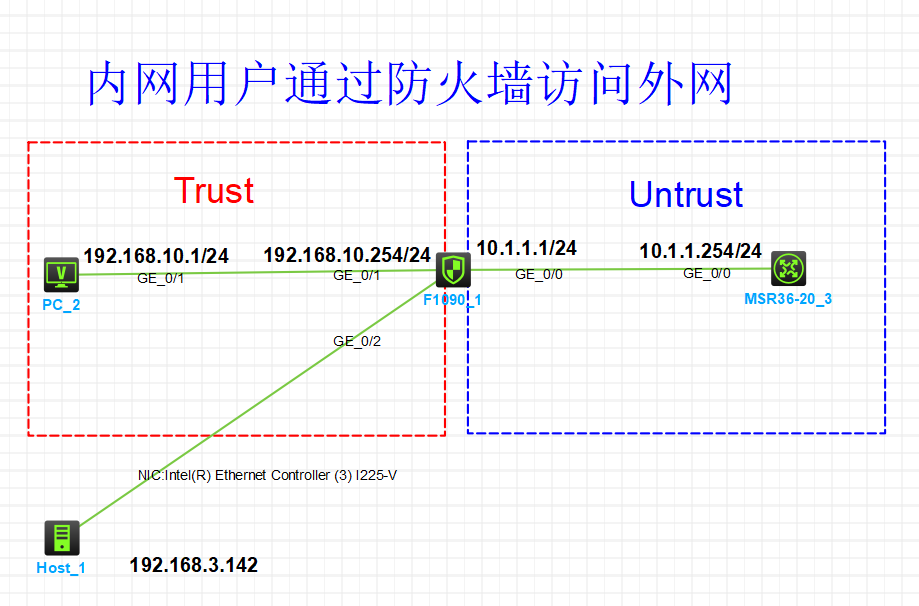

一,基本拓扑

二,DHCP配置过程

配置防火墙F1090接口ip 地址如下，其它接口配置类似略

#
interface GigabitEthernet1/0/1
 port link-mode route
 combo enable copper
 ip address 192.168.10.254 255.255.255.0
 dhcp server apply ip-pool dhcp
#

配置DHCP服务
- 开启DHCP服务

#
 dhcp enable
#

配置DHCP地址池

#
dhcp server ip-pool dhcp
 gateway-list 192.168.10.254
 network 192.168.10.0 mask 255.255.255.0
 address range 192.168.10.100 192.168.10.200
 dns-list 192.168.10.254
 forbidden-ip 192.168.10.1
#

在接口上应用DHCP地址池

#
interface GigabitEthernet1/0/1
 port link-mode route
 combo enable copper
 ip address 192.168.10.254 255.255.255.0
 dhcp server apply ip-pool dhcp
#

F1091配置下载

三,防火墙区域配置

#
security-zone name Local
#
security-zone name Trust
 import interface GigabitEthernet1/0/1
 import interface GigabitEthernet1/0/2
#
security-zone name DMZ
#
security-zone name Untrust
 import interface GigabitEthernet1/0/0
#
security-zone name Management
#
 scheduler logfile size 16
#

四,安全策略配置

#
security-policy ip
 rule 0 name L-T
  action pass
  source-zone local
  destination-zone trust
 rule 1 name T-L
  action pass
  source-zone trust
  destination-zone local
 rule 2 name T_to_Unt
  action pass
  source-zone trust
  destination-zone untrust
#

五,NAT策略配置

#
nat policy
 rule name Nat
#
nat global-policy
 rule name Nat
  source-zone trust
  destination-zone untrust
  source-ip subnet 192.168.10.0 24
  action snat easy-ip
#
