ACL访问控制列表（流量过滤）配置实验

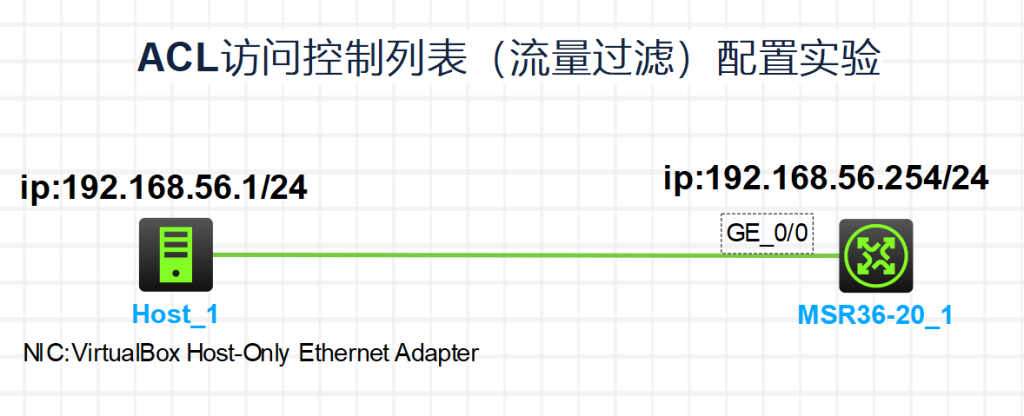

一，网络拓扑

二，实验说明

1，拒绝主机ip:192.168.56.1/24,在路由上通过端口21FTP访问

三，路由基本配置

1，在接口G0/0上配置IP地址：192.168.56.254/24

#
interface GigabitEthernet0/0
 port link-mode route
 combo enable copper
 ip address 192.168.56.254 255.255.255.0
#

2，配置登录账号及FTP功能

#
local-user admin class manage
 password hash $h$6$74yhHuyFx7wgEidf$WZUYOcFainsVIQSj1zvs4idBqfRoKlw7tfRS2hT86D1/5WpVQZ8IZcVRjXSmFvGUJAlNWnfM/Ojb1Sd6GDucKA==
 service-type ftp
 service-type ssh telnet terminal
 authorization-attribute work-directory flash:/
 authorization-attribute user-role level-15
 authorization-attribute user-role network-admin
 authorization-attribute user-role network-operator
#

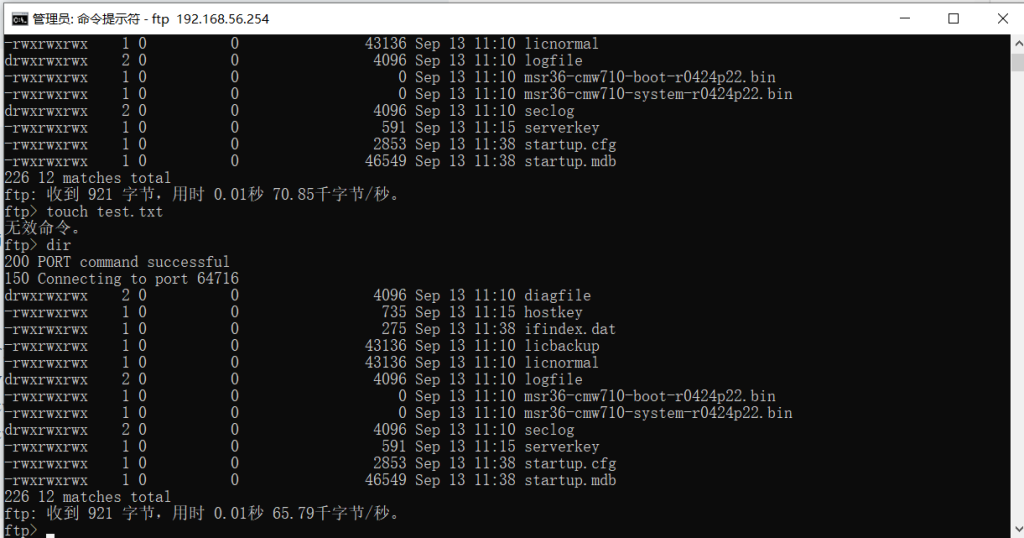

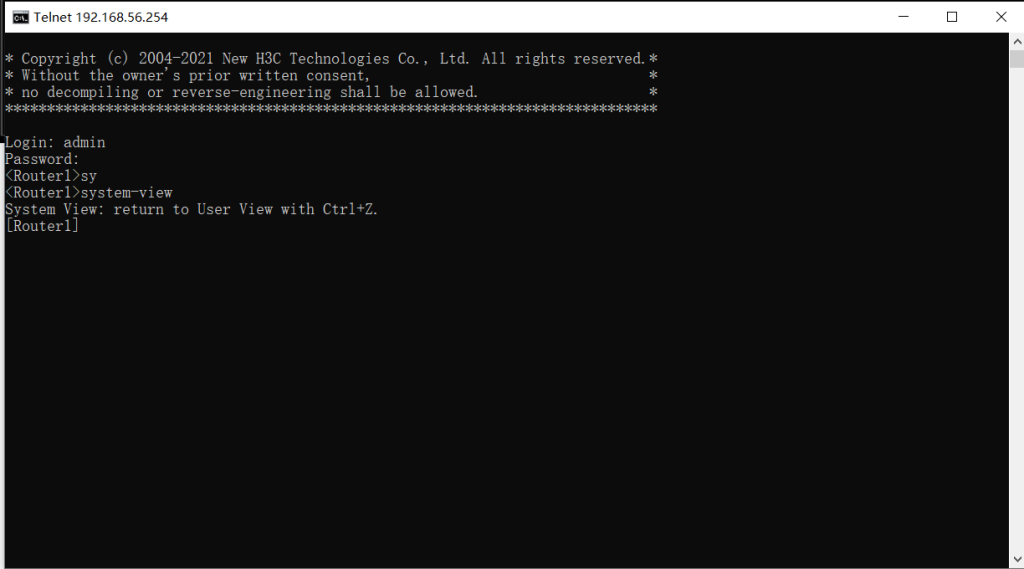

3，telnet ，Ftp登录测试

四，ACL相关配置

1，创建ACL高级列表

#
acl advanced 3000
 rule 0 permit tcp source-port eq ftp
#

2，创建Classifier流分类，命名toFTP 并指向ACL 3000

#
traffic classifier toFTP operator and
 if-match acl 3000
#

3,创建流行为behavior，并命名toFTP

#
traffic behavior toFTP
 filter deny
#

4，创建qos策略P1

#
qos policy p1
 classifier toFTP behavior toFTP
#

5,在接口g0/0下执行qos策略

#
interface GigabitEthernet0/0
 port link-mode route
 combo enable copper
 ip address 192.168.56.254 255.255.255.0
 qos apply policy p1 inbound
#
